GATEWAY M685, MX8000, PA2, PA6 SERIES PARTS:

• MEMORY

• WIRELESS (WIFI), BLUETOOTH & MODEM CARDS

• CPU HEATSINK & SYSTEM FANS

• MOTHERBOARDS

• LCDS (MATTE/ULTRA BRIGHT & X-BRITE)

• LCD INVERTER & VIDEO CABLES

• HARD DRIVE & DRIVE CADDYS

• DVDRW & CDRW/DVD COMBO DRIVES

• AC ADAPTER, BATTERY & MA8 DC POWER JACK

• KEYBOARD & KEYBOARD COVER (POWER BUTTON PANEL)

• PALMREST WITH TOUCHPAD

• HINGE & BOTTOM CASE ASSEMBLY (CHASSIS)

• LCD BACK COVER & LCD BEZEL

M685, MX8000, PA2, PA6 DDR2 MEMORY
GATEWAY M685, MX8700, PA6 MEMORY: 1GB DDR2,  2GB DDR2

M685, MX8000, PA2, PA6 MINI PCI & PCIe CARDS

GATEWAY M685, MX8700, PA6 MINI PCIe INTEL/PRO WIFI CARD 6003022R, WM3945ABG, PD9WM3945ABG
GATEWAY MX8700, PA6A MINI PCIe BROADCOM WIFI CARD 27MA3WLTA60, BCM94311MCG

GATEWAY MX8500, PA2 MINI PCI INTEL PRO2200 WIFI CARD 6002674, 6002785

GATEWAY M685, PA6, PA6A BLUETOOTH CARD BLUETOOTH CARD T60H928.09, 2528448R

M685, MX8000, PA2, PA6 CPU HEATSINK & FAN

GATEWAY PA2 HEATSINK WITH FAN 35PA2TATA05, KFB05405HC

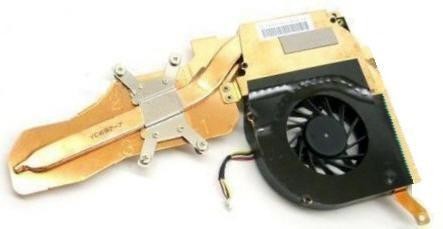

GATEWAY M685, MX8700, PA6 HEATSINK FAN ART35PA6TATA34113A, 35PA6TATA34, 35PA6TATA00

GATEWAY MX8700, PA6 CPU HEATSINK WITH FAN 35PA6TATA26

GATEWAY PA2, PA6, PA6A HEATSINK FAN CHASSIS SYSTEM FAN

M685, MX8000, PA2, PA6 MOTHERBOARDS

GATEWAY M685, MX8700, NX860 PA6 MOTHERBOARD 31PA6MB0018, 4006145R OR 31PA6MB0051

GATEWAY MX8700, PA6 MOTHERBOARD FOR UNITS WITHOUT MXM VIDEO CARD 31PA6MB0090

GATEWAY MX8500, NX850, PA2 MOTHERBOARD 31PA2MB0005, 103960

CONVERT GATEWAY MX8700 TO M685 MOTHERBOARD UPGRADE KIT

M685, MX8000, PA2, PA6 LCD SCREEN DISPLAY

GATEWAY MX8500, PA2 LCD: LTN170WX-L05, LP171WX2 (A4)

GATEWAY M685, MX8700, PA6 LCD: LTN170WP-L02, LTN170X2-L02

M685, MX8000, PA2, PA6 LCD INVERTER & VIDEO CABLE

GATEWAY M685, MX8000, PA6, PA2 LCD VIDEO CABLE DD0PA2LC001, 8010398R

GATEWAY M685, MX8000, PA6, PA2 INVERTER IV10123/T-LF

M685, MX8000, PA2, PA6 MXM VIDEO CARD

GATEWAY MX8500, PA2 VIDEO CARDS: ATi/NVIDIA 64MB, 128MB & 256MB

GATEWAY M685, MX8700, PA6 VIDEO CARDS: 128MB - 33PA6VB0045, 256MB - 33PA6VB0061

M685, MX8000, PA2, PA6 OPTICAL DRIVES

GATEWAY M685, MX8000, PA6, PA2: CDRW/DVD COMBO, DVD+RW BURNER

M685, MX8000, PA2, PA6 SATA & IDE HARD DRIVES & CADDY

GATEWAY M685, MX8000, PA6, PA2 HARD DRIVE CADDY 8007645

GATEWAY M685, MX8700, PA6 SATA HARD DRIVE: 120GB, 160GB, 250GB, 320GB

GATEWAY MX8500, PA2 IDE/ATA HARD DRIVE: 60GB, 80GB, 100GB, 120GB, 160GB

M685, MX8000, PA2, PA6 AC ADAPTERS, BATTERY & POWER BOARD

GATEWAY M685, MX8000, PA6, PA2 AC ADAPTER: 65 WATT ADAPTER, 90 WATT ADAPTER

GATEWAY M685, MX8000, PA6, PA2 POWER ON/OFF BUTTON BOARD CA3A32PA6SB0003

GATEWAY M685, MX8000, PA6, PA2 BATTERY: 6 CELL BATTERY, 8 CELL BATTERY, 12 CELL BATTERY

M685, MX8000, PA2, PA6 KEYBOARD & POWER BUTTON PANEL

GATEWAY M685, MX8700, PA6 KEYBOARD AEPA6TAU111

GATEWAY MX8500, PA2 KEYBOARD AEPA2TAU019

GATEWAY M685, MX8000, PA6, PA2 POWER BUTTON PANEL/KEYBOARD COVER

M685, MX8000, PA2, PA6 PALMREST WITH TOUCHPAD

GATEWAY M685, MX8000, PA6, PA2 PALMREST WITH TOUCHPAD 37PA6TATA01, QND38PA2KATA01

M685, MX8000, PA2, PA6 17.1" LCD BACK COVER & BEZEL

GATEWAY M685, MX8000, PA6, PA2 LCD BACK COVER 3APA6LCTA05, 8015769R, 3APA6LCTA21

GATEWAY M685, MX8000, PA6, PA2 LCD BEZEL 3EPA2LBTA09, 3EPA6LBTA11

M685, MX8000, PA2, PA6 HINGE & BOTTOM CASE (CHASSIS)

GATEWAY M685, MX8000, PA6, PA2 LCD HINGE ASSEMBLY

GATEWAY M685, MX8000, PA6, PA2 BOTTOM CASE ASSEMBLY (CHASSIS BASE)

GATEWAY MX8700 UPGRADE KIT

UPGRADE YOUR MX8711, MX8715, MX8721m, MX8734, MX8738, MX8739 OR MX8741
TO HAVE THE SPECS OF AN M685-G, M685-E, MX8701j, MX8703j, MX8707j,
MX8736j, NX860X, NX860XL.

THE PARTS SHOWN BELOW ARE BEING SOLD AS AN UPGRADE KIT. THE KIT WILL GIVE THE FOLLOWING
BENEFITS IF USED TO UPGRADE AN MX8700 WITH INTEGRATED VIDEO; BETTER CHIPSET (945PM WHICH
RAM EXPANSION UP TO 4GB DDR2), PCIe VIDEO CARD SLOT (USE DISCRETE VIDEO CARD UP TO 256MB).

USE YOUR EXISTING CASE HARDWARE, LCD ASSEMBLY, KEYBOARD, BATTERY, ADAPTER, HARD DRIVE,
MEMORY, WIFI CARD & OPTICAL DRIVE. HOWEVER, YOU WILL NEED TO REINSTALL YOUR VERSION
OF WINDOWS (XP OR VISTA).

TO SUM IT UP; YOU WILL HAVE BETTER VIDEO PERFORMANCE & MEMORY EXPANSION

GATEWAY MX8700 UPGRADE KIT: 945PM CHIPSET MOTHERBOARD, CPU HEATSINK WITH FAN 128MB VIDEO CARD, VIDEO CARD HEATSINK & SECONDARY COOLING FAN

P/N: 31PA6MB0051,
4006112R


P/N: 35PA6TATA00,
ART35PA6TATA34113A,
35PA6TATA34

P/N: 6008011R,
QND1MIYZZZ05Q4


PA2, PA6, PA6A ON/OFFF POWER BUTTON BOARD

GATEWAY 8000 POWER ON/OFF BUTTON

GATEWAY M680, M685 POWER ON/OFF BUTTON

GATEWAY MX8500, MX8700 POWER ON/OFF BUTTON

GATEWAY NX800 POWER ON/OFF BUTTON

GATEWAY PA2, PA6, PA6A POWER ON/OFF BUTTON

1. PA2, PA6/PA6A POWER ON/OFF BUTTON WITH:
   2 USB 2.0 PORTS, MODEM JACK (RJ-11), ETHERNET JACK
   (NIC RJ-45)

APPLICABLE PART NUMBER(S): CA3A32PA6SB0003, 32PA6SB0003

CONDITION: 100% WORKING USED SYSTEM PULL
WARRANTY: 30 DAYS
PRICE:$35.00

GATEWAY NX860X, NX860XL DVDRW DRIVE

GATEWAY MX8739, NX860X, NX860XL SERIES DVD+RW DRIVE
SPECIFICATIONS:

1. 8X DVD+RW MULTI-FORMAT DOUBLE LAYER DRIVE

   COMPATIBLE PART NUMBER(S): 2528072R, 2528074R

CONDITION: PULLED FROM 100% WORKING USED SYSTEM
WARRANTY: 60 DAYS
PRICE:$80.00

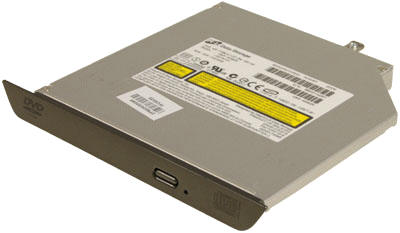

GATEWAY NX860XL, NX860X CDRW/DVD COMBO  DRIVE

GATEWAY NX860X, NX860XL 24X CDRW/DVD COMBO DRIVE
SPECIFICATIONS:

1. NX860 24X 24X 24X 8X CDRW/DVD COMBO DRIVE

   COMPATIBLE PART NUMBER(S): 2PA6DVD0050

CONDITION: PULLED FROM 100% WORKING USED SYSTEM
WARRANTY: 60 DAYS
PRICE:$65.00
